UF-5500Universal Flush Access Door
Reliable general-purpose access for commercial interiors.
For Edmonton and Alberta projects: contact Kern Industries in Edmonton, Alberta to confirm your size, options and pickup arrangements.
- Application
- Walls & ceilings
- Material
- Prime-coated steel
SIZES & CONFIGURATIONS
Manufacturer sizes
Dimensions below are in inches. Roof-hatch tables may specify inside curb dimensions; round panels use diameter. Review the manufacturer table and drawing before specifying an opening. Availability depends on the configuration.
PRODUCT FEATURES
Manufacturer highlights
- Galvanized steel door and frame
- Concealed hinge
- Slotted screwdriver cam latch
- Baked white prime coat
ORDER OPTIONS
Available choices
- Cylinder lock and key
- Allen, spanner or Torx cam latch
- Torx with security pin
- Other sizes by request

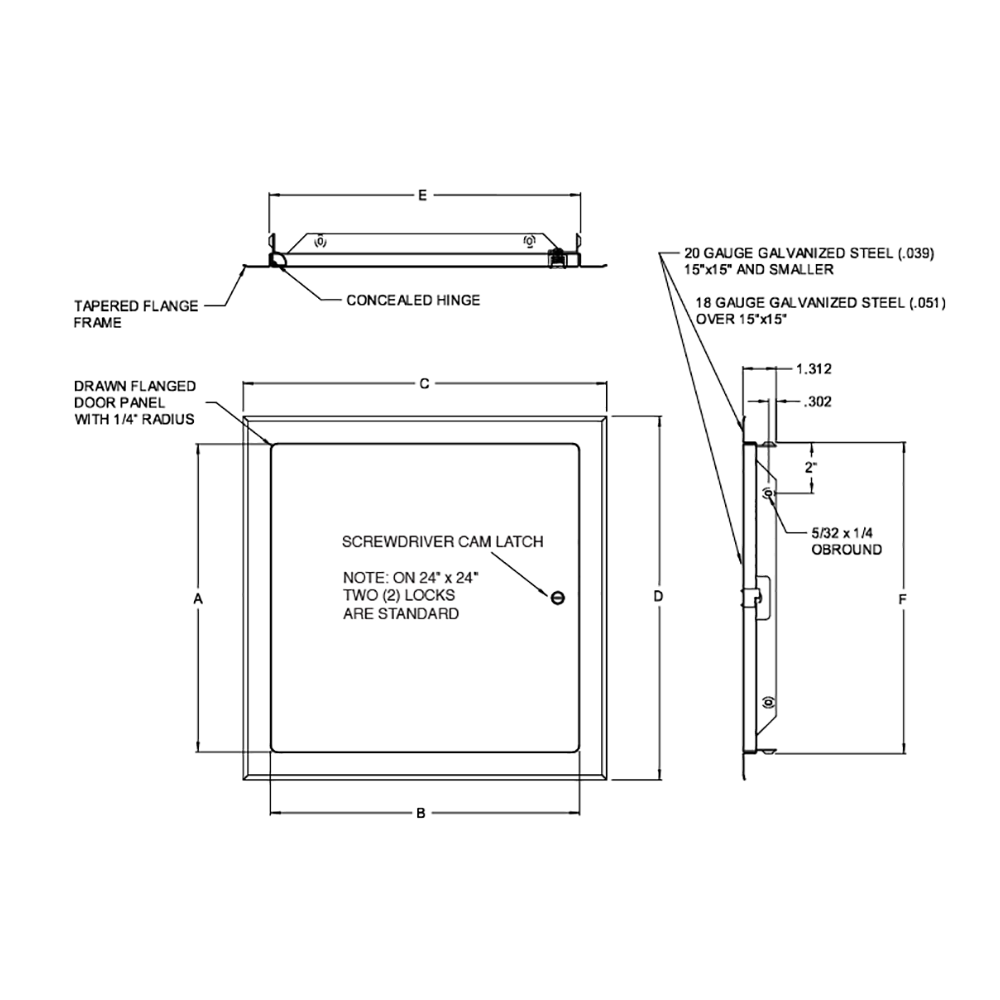

MANUFACTURER REFERENCE
Dimensions & specifications
STANDARD SIZES
Other sizes available upon request
| Nominal Door Size W&H | Latches | Weight per Door | ||
|---|---|---|---|---|
| Inches | mm | lbs. | kg. | |
| 6 X 6 | 152 X 152 | 1 | 1.3 | 0.59 |
| 8 X 8 | 203 X 203 | 1 | 1.8 | 0.82 |
| 12 X 12 | 305 X 305 | 1 | 3.3 | 1.50 |
| 15 X 15 | 381 X 381 | 1 | 5.3 | 2.40 |
| 18 X 18 | 457 X 457 | 1 | 7.3 | 3.31 |
| 24 X 24 | 610 X 610 | 2 | 11.8 | 5.35 |
Manufacturer tables are reproduced as published; dimensions, weights and listings should be confirmed against the current submittal for your selected configuration.
