UF-5000Universal Flush Access Door
A versatile everyday access door with a clean, exposed flange.
For Edmonton and Alberta projects: contact Kern Industries in Edmonton, Alberta to confirm your size, options and pickup arrangements.
- Application
- Walls & ceilings
- Material
- Prime-coated steel
SIZES & CONFIGURATIONS
Manufacturer sizes
Dimensions below are in inches. Roof-hatch tables may specify inside curb dimensions; round panels use diameter. Review the manufacturer table and drawing before specifying an opening. Availability depends on the configuration.
PRODUCT FEATURES
Manufacturer highlights
- Steel door and frame
- Continuous concealed hinge
- Stainless steel screwdriver cam latch
- Baked white prime coat
ORDER OPTIONS
Available choices
- Type 304 stainless steel, #4 satin
- Cylinder lock and key
- Allen, spanner or security Torx cam latch
- Other sizes by request
MANUFACTURER REFERENCE

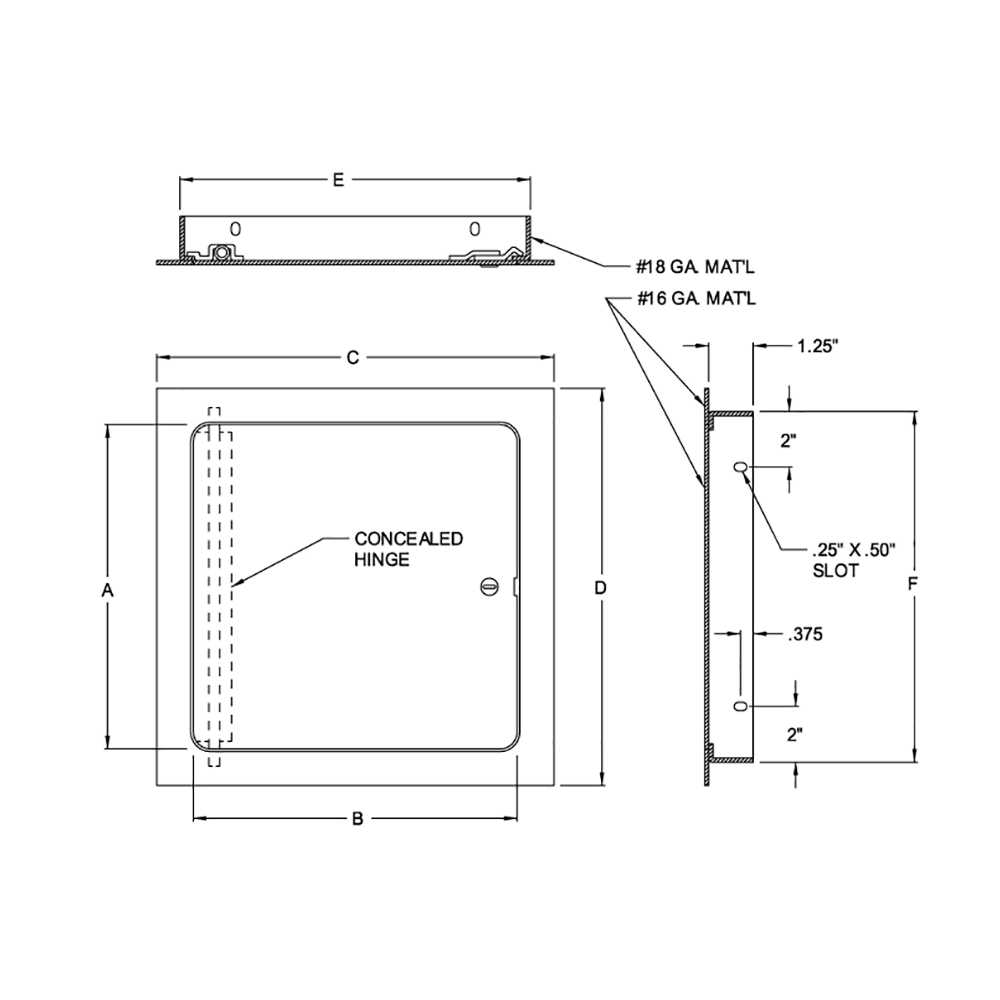

Dimensions & specifications
STANDARD SIZES
Other sizes available upon request
| Nominal Door Size W&H | Latches | Weight per Door | ||
|---|---|---|---|---|
| Inches | mm | lbs. | kg. | |
| 6 X 6 | 152 X 152 | 1 | 1.95 | 0.9 |
| 8 X 8 | 203 X 203 | 1 | 2.5 | 1.1 |
| 8 X 12 | 203 X 305 | 1 | 3.4 | 1.5 |
| 10 X 10 | 254 X 254 | 1 | 3.4 | 1.5 |
| 12 X 12 | 305 X 305 | 1 | 4.6 | 2.1 |
| 12 X 16 | 305 X 406 | 2 | 5.7 | 2.6 |
| 12 X 18 | 305 X 457 | 2 | 7.4 | 3.4 |
| 12 X 24 | 305 X 610 | 2 | 10.4 | 4.7 |
| 14 X 14 | 356 X 356 | 1 | 5.8 | 2.6 |
| 16 X 16 | 406 X 406 | 2 | 7.4 | 3.4 |
| 16 X 24 | 406 X 610 | 2 | 12.4 | 5.6 |
| 18 X 18 | 457 X 457 | 2 | 10.8 | 4.9 |
| 18 X 24 | 457 X 610 | 2 | 12.2 | 5.5 |
| 22 X 22 | 560 X 560 | 4 | 15.3 | 6.9 |
| 22 X 30 | 560 X 762 | 5 | 22.3 | 10.1 |
| 22 X 36 | 560 X 914 | 5 | 27.9 | 12.7 |
| 24 X 24 | 610 X 610 | 4 | 17.7 | 8.0 |
| 24 X 30 | 610 X 762 | 5 | 23.5 | 10.7 |
| 24 X 36 | 610 X 914 | 5 | 27.9 | 12.7 |
| 24 X 48 | 610 X 1219 | 2 | 38.0 | 17.2 |
| 30 X 30 | 762 X 762 | 5 | 28.3 | 12.8 |
| 36 X 36 | 914 X 914 | 5 | 38.2 | 17.3 |
| 36 X 48 | 914 X 1219 | 2 | 42.0 | 19.1 |
| 48 X 48 | 1219 X 1219 | 2 | 48.0 | 21.8 |
Manufacturer tables are reproduced as published; dimensions, weights and listings should be confirmed against the current submittal for your selected configuration.
