SpecialtyACUDOR ACCESS PRODUCT • KERN INDUSTRIES
LT-4000Lightweight Aluminum Access Door
A lightweight, corrosion-resistant option for demanding locations.
For Edmonton and Alberta projects: contact Kern Industries in Edmonton, Alberta to confirm your size, options and pickup arrangements.
- Application
- Interior / exterior
- Material
- Aluminum
SIZES & CONFIGURATIONS
Manufacturer sizes
Dimensions below are in inches. Roof-hatch tables may specify inside curb dimensions; round panels use diameter. Review the manufacturer table and drawing before specifying an opening. Availability depends on the configuration.
PRODUCT FEATURES
Manufacturer highlights

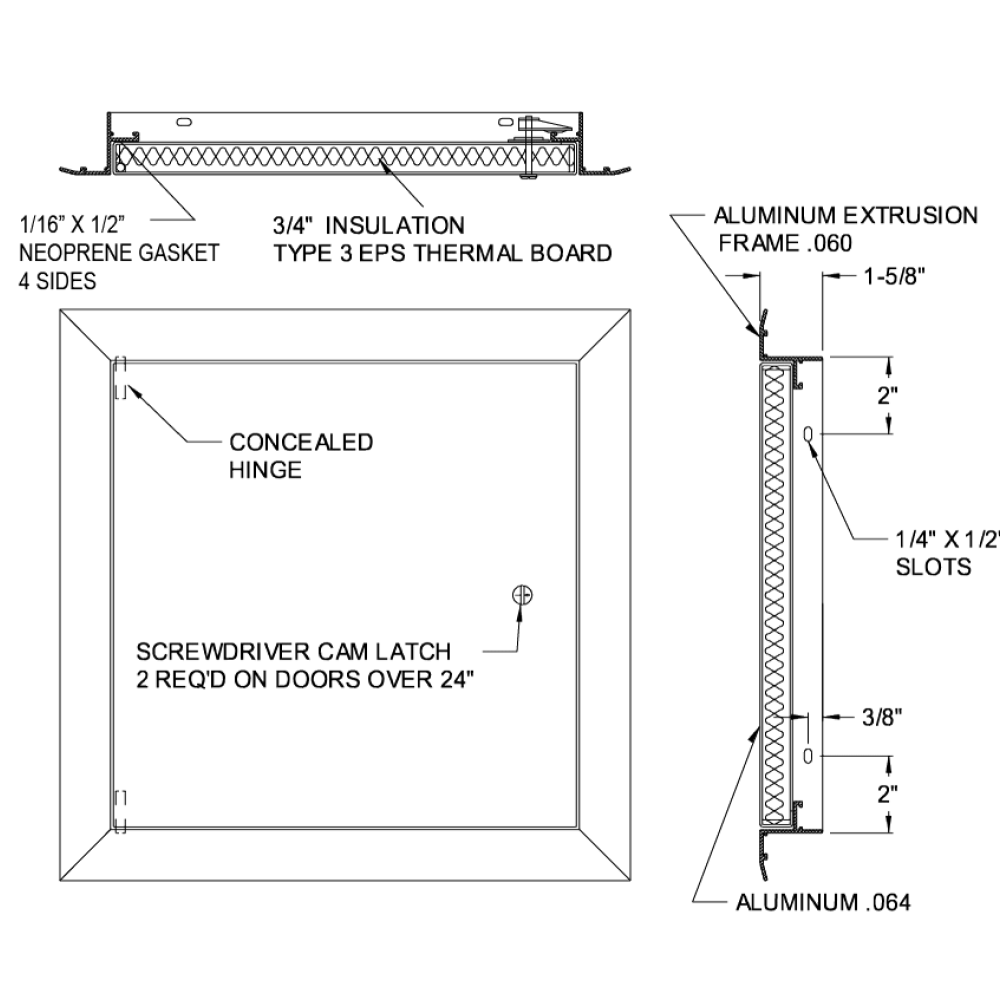

- All-aluminum door and frame
- 3/4-in polystyrene insulation
- Closed-cell neoprene gasket
- Mill finish
- Screwdriver-operated cam latch
- Concealed pin hinge through 24-in width; continuous piano hinge over 24-in width
ORDER OPTIONS
Available choices
- Cylinder lock and key
- Other sizes by request
MANUFACTURER REFERENCE
Dimensions & specifications
STANDARD SIZES
Other sizes available upon request
| Nominal Door Size W&H | Weight per Door | |||
|---|---|---|---|---|
| Inches | mm | Latches | lbs | kg |
| 8 X 8 | 203 X 203 | 1.0 | 1.8 | 0.8 |
| 10 X 10 | 254 X 254 | 1.0 | 2.3 | 1.0 |
| 12 X 12 | 305 X 305 | 1.0 | 2.9 | 1.3 |
| 14 X 14 | 355 X 355 | 1.0 | 3.5 | 1.6 |
| 16 X 16 | 406 X 406 | 1.0 | 4.2 | 1.9 |
| 18 X 18 | 457 X 457 | 1.0 | 4.9 | 2.2 |
| 24 X 24 | 610 X 610 | 1.0 | 7.3 | 3.3 |
| 24 X 36 | 610 X 914 | 2.0 | 10.4 | 4.7 |
| 24 X 48 | 610 X 1220 | 2.0 | 13.5 | 6.1 |
| 30 X 30 | 762 X 762 | 2.0 | 11.7 | 5.3 |
| 36 X 36 | 914 X 914 | 2.0 | 15.3 | 6.9 |
| 36 X 48 | 914 X 1220 | 2.0 | 19.3 | 8.8 |
| 48 X 48 | 1220 X 1220 | 4.0 | 24.3 | 11.0 |
| 60 X 48 | 1524 X 1220 | 4.0 | 34.0 | 15.4 |
| 72 X 48 | 1830 X 1220 | 4.0 | 40.0 | 18.1 |
Manufacturer tables are reproduced as published; dimensions, weights and listings should be confirmed against the current submittal for your selected configuration.
CONTACT OUR TEAM
Call, text or email us.
Keep the model, nominal size and selected options handy so we can confirm your order quickly.
