FW-5050Insulated Fire-Rated Access Door

Insulated access for rated wall and ceiling assemblies.

For Edmonton and Alberta projects: contact Kern Industries in Edmonton, Alberta to confirm your size, options and pickup arrangements.

Application: Walls & ceilings
Material: Steel / stainless

SIZES & CONFIGURATIONS

Manufacturer sizes

Dimensions below are in inches. Roof-hatch tables may specify inside curb dimensions; round panels use diameter. Review the manufacturer table and drawing before specifying an opening. Availability depends on the configuration.

8×810×1012×1214×1416×1618×1820×2022×2222×3022×3624×2424×3024×3624×48*30×30*36×36*36×48*

Rough opening guidanceNominal door size + 3/8 in (9 mm); *marked sizes are wall-only/non-rated in ceilings

FIRE-RATING INFORMATION

Listed applications

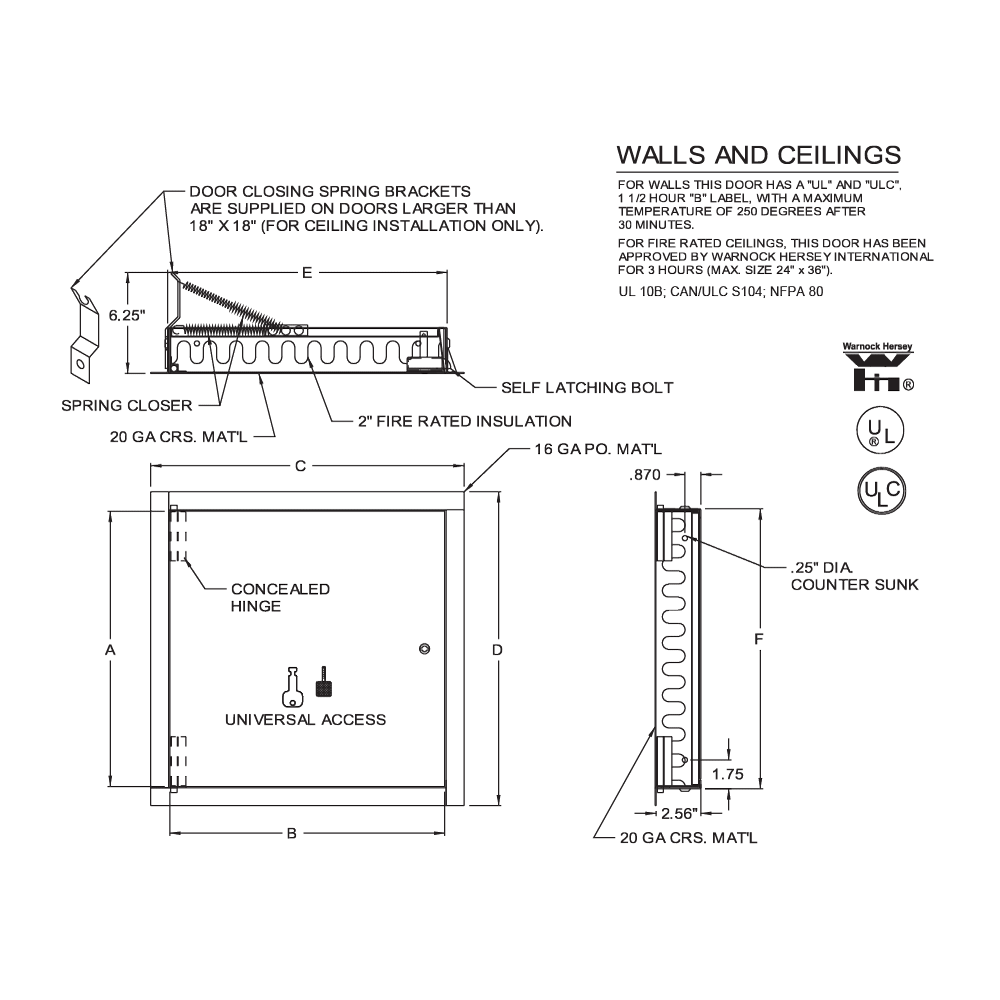

Walls: UL 1½-hour B label; ULC 2-hour B label, maximum 36×48 in. Ceilings: 3 hours non-combustible / 1 hour combustible, maximum 24×36 in, subject to the listed assembly. Confirm the required label when ordering.

Always confirm the current listing, assembly and authority requirements before ordering.

PRODUCT FEATURES

Manufacturer highlights

20-gauge insulated door, 16-gauge frame
2-in fire-rated insulation
Self-closing and self-latching
Baked white prime coat

ORDER OPTIONS

Available choices

Steel or stainless steel
Knurled knob or flush-key operation
Preparation for mortise cylinder lock
Other sizes by request

MANUFACTURER REFERENCE

Dimensions & specifications

STANDARD SIZES

Other sizes available upon request

FW-5050 — manufacturer table
Nominal Door Size W&H			Weight per Door
Inches	mm	Latches	lbs.	kg.
8 X 8	203 X 203	1	6.1	2.8
10 X 10	254 X 254	1	8.1	3.7
12 X 12	305 X 305	1	9.7	4.4
14 X 14	356 X 356	1	12.4	5.6
16 X 16	406 X 406	1	15.6	7.1
18 X 18	457 X 457	1	18.3	8.3
20 X 20	508 X 508	1	22.0	9.9
22 X 22	559 X 559	1	25.0	11.3
22 X 30	559 X 762	2	32.0	14.5
22 X 36	559 X 914	2	35.0	15.9
24 X 24	610 X 610	1	30.3	12.7
24 X 30	610 X 762	2	38.0	17.2
24 X 36	610 X 914	2	44.4	20.1
*24 X 48	610 X 1219	2	55.0	24.9
*30 X 30	762 X 762	2	42.8	19.4
*36 X 36	914 X 914	2	59.0	26.8
*36 X 48	914 X 1220	2	75.3	34.2

Manufacturer tables are reproduced as published; dimensions, weights and listings should be confirmed against the current submittal for your selected configuration.
