FB-5060Uninsulated Fire-Rated Access Door

Rated protection where an uninsulated door is specified.

For Edmonton and Alberta projects: contact Kern Industries in Edmonton, Alberta to confirm your size, options and pickup arrangements.

Application: Walls
Material: Steel / stainless

SIZES & CONFIGURATIONS

Manufacturer sizes

Dimensions below are in inches. Roof-hatch tables may specify inside curb dimensions; round panels use diameter. Review the manufacturer table and drawing before specifying an opening. Availability depends on the configuration.

8×810×1012×1214×1416×1618×1820×2022×2222×3022×3624×2424×3024×3624×4830×3036×3636×48

Rough opening guidanceNominal door size + 3/8 in (9 mm)

FIRE-RATING INFORMATION

Listed applications

For rated walls: UL 1½-hour B label; optional ULC 2-hour B label. Confirm the project assembly and label requirement before ordering.

Always confirm the current listing, assembly and authority requirements before ordering.

PRODUCT FEATURES

Manufacturer highlights

16-gauge door and frame
Uninsulated reinforced panel
Self-closing and self-latching
Baked white prime coat

ORDER OPTIONS

Available choices

Steel or stainless steel
Knurled knob or flush-key operation
Rim or mortise cylinder preparation
Other sizes by request

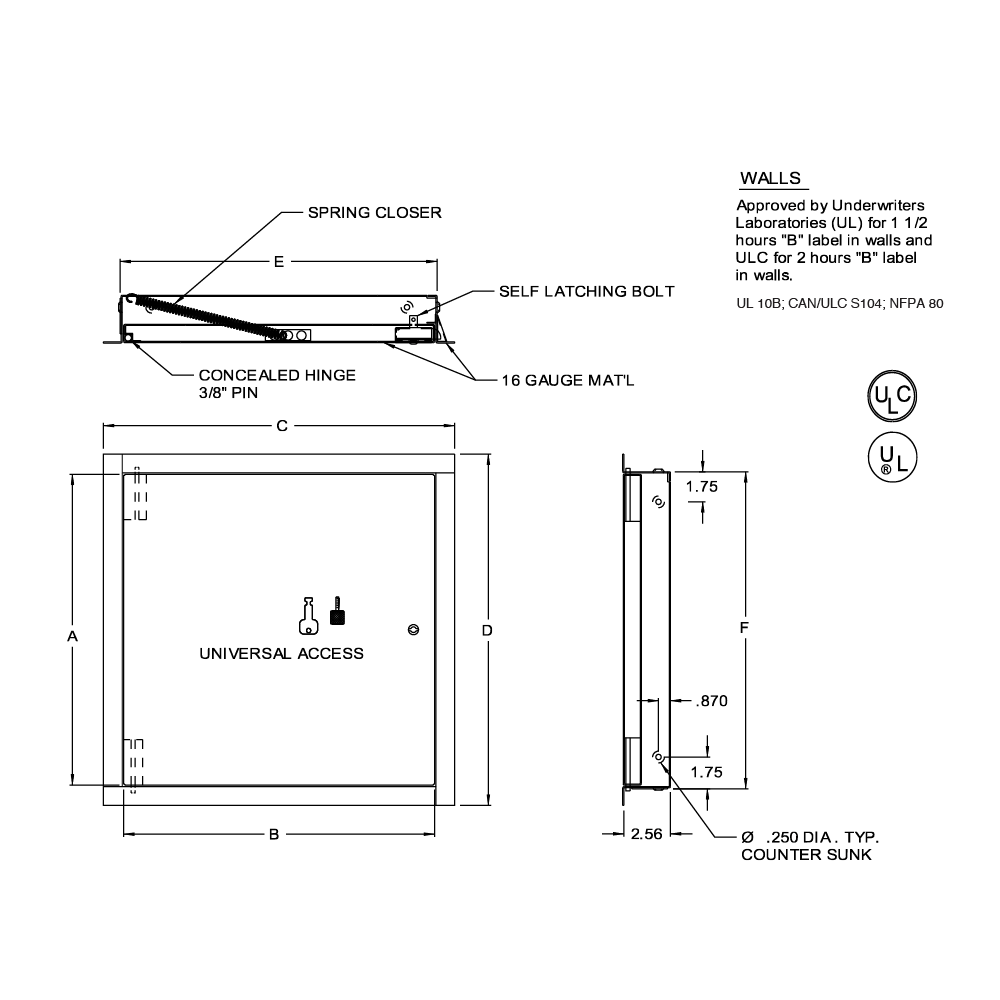

MANUFACTURER REFERENCE

Dimensions & specifications

STANDARD SIZES

Other sizes available upon request

FB-5060 — manufacturer table
Nominal Door Size W&H			Weight per Door
Inches	mm	Latches	lbs.	kg.
8 X 8	203 X 203	1	5.5	2.5
10 X 10	254 X 254	1	6.5	2.9
12 X 12	305 X 305	1	8.2	3.7
14 X 14	356 X 356	1	8.3	3.8
16 X 16	406 X 406	1	11.1	5.0
18 X 18	457 X 457	1	13.8	6.3
20 X 20	508 X 508	2	18.0	8.2
22 X 22	559 X 559	2	21.0	11.3
22 X 30	559 X 762	2	24.9	12.5
22 X 36	559 X 914	2	27.5	12.5
24 X 24	610 X 610	1	20.1	9.1
24 X 30	610 X 762	2	25.6	11.6
24 X 36	610 X 914	2	29.7	13.5
24 X 48	610 X 1219	2	35.7	16.2
30 X 30	762 X 762	2	28.4	12.9
36 X 36	914 X 914	2	38.7	17.6
36 X 48	914 X 1220	2	48.8	22.1

Manufacturer tables are reproduced as published; dimensions, weights and listings should be confirmed against the current submittal for your selected configuration.
