FloorACUDOR ACCESS PRODUCT • KERN INDUSTRIES
FA-300Angle-Frame Aluminum Floor Door
Cast-in floor access for a 300 lb/sq ft live load, where watertightness is not required.
For Edmonton and Alberta projects: contact Kern Industries in Edmonton, Alberta to confirm your size, options and pickup arrangements.
- Application
- Interior / exterior floors
- Material
- Aluminum
SIZES & CONFIGURATIONS
Manufacturer sizes
Dimensions below are in inches. Roof-hatch tables may specify inside curb dimensions; round panels use diameter. Review the manufacturer table and drawing before specifying an opening. Availability depends on the configuration.
PRODUCT FEATURES
Manufacturer highlights
- 1/4-in aluminum diamond plate
- 300 lb/sq ft live-load rating
- Stainless steel hinges and hardware
- Flush drop handle with padlock staple
- Automatic hold-open arm
- Mill finish; not watertight
ORDER OPTIONS
Available choices
- *Double-leaf configuration
- Bituminous frame coating
- Stainless compression springs
- Slam lock or recessed padlock provision
- Electrical actuator

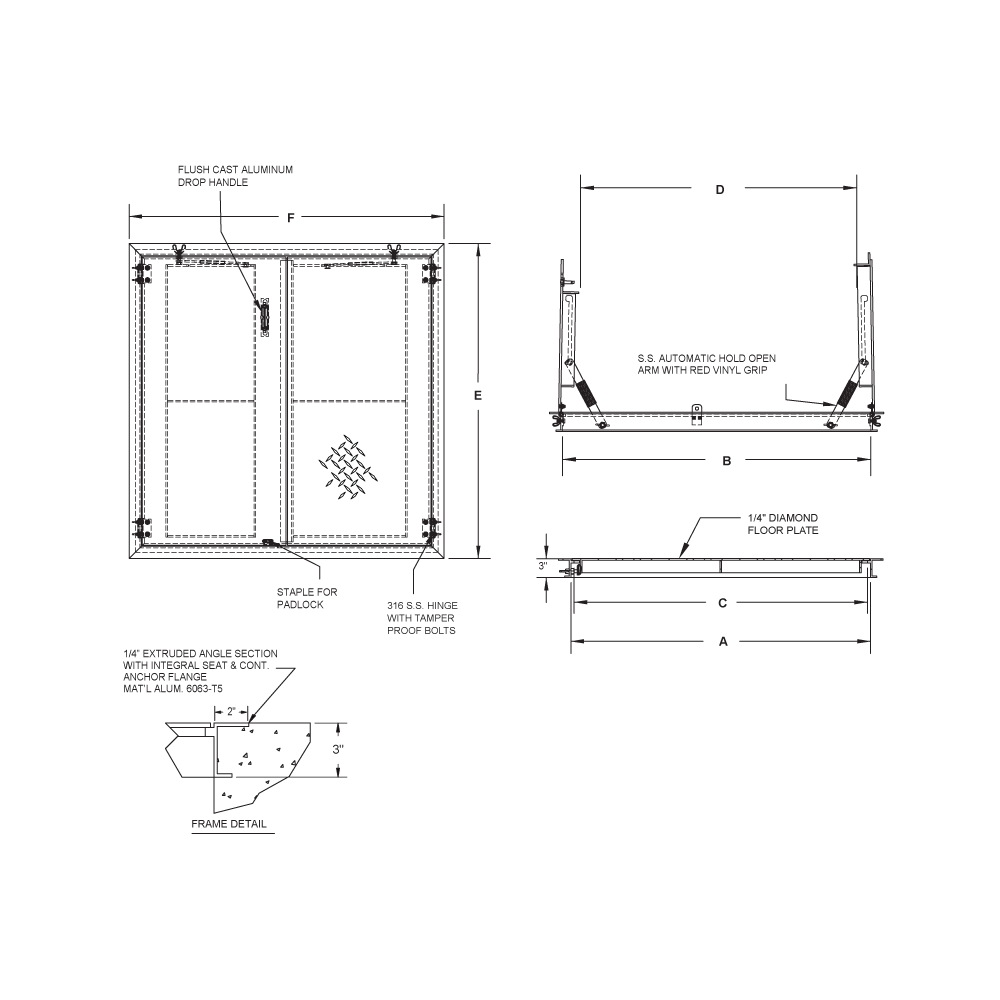

MANUFACTURER REFERENCE
Dimensions & specifications
STANDARD SIZES
Other sizes available upon request
| Nominal Door Size W&H | Weight per Door | ||
|---|---|---|---|
| Inches | mm | lbs. | kg. |
| 24 X 24 | 610 X 610 | 42 | 19 |
| 24 X 30 | 610 X 762 | 49 | 22 |
| 24 X 36 | 610 X 914 | 55 | 25 |
| 30 X 30 | 762 X 762 | 57 | 26 |
| 30 X 48 | 762 X 1219 | 80 | 36 |
| 36 X 36 | 914 X 914 | 73 | 33 |
| 36 X 48 | 914 X 1219 | 92 | 42 |
| 42 X 42 | 1067 X 1067 | 94 | 43 |
| 48 X 48* | 1219 X 1219 | 123 | 56 |
| 48 X 72* | 1219 X 1829 | 170 | 77 |
| 60 X 60* | 1524 X 1524 | 177 | 80 |
Manufacturer tables are reproduced as published; dimensions, weights and listings should be confirmed against the current submittal for your selected configuration.
