FlushACUDOR ACCESS PRODUCT • KERN INDUSTRIES
ED-2002Economy Flush Access Door
A practical choice where straightforward service access is the priority.
For Edmonton and Alberta projects: contact Kern Industries in Edmonton, Alberta to confirm your size, options and pickup arrangements.
- Application
- Walls & ceilings
- Material
- Prime-coated steel
SIZES & CONFIGURATIONS
Manufacturer sizes
Dimensions below are in inches. Roof-hatch tables may specify inside curb dimensions; round panels use diameter. Review the manufacturer table and drawing before specifying an opening. Availability depends on the configuration.
PRODUCT FEATURES
Manufacturer highlights
- 18-gauge steel door and frame
- Concealed hinge pin
- Stainless steel screwdriver cam latch
- Baked white prime coat
- Bend-tab mounting on sizes through 12×12
ORDER OPTIONS
Available choices
- Other sizes by request

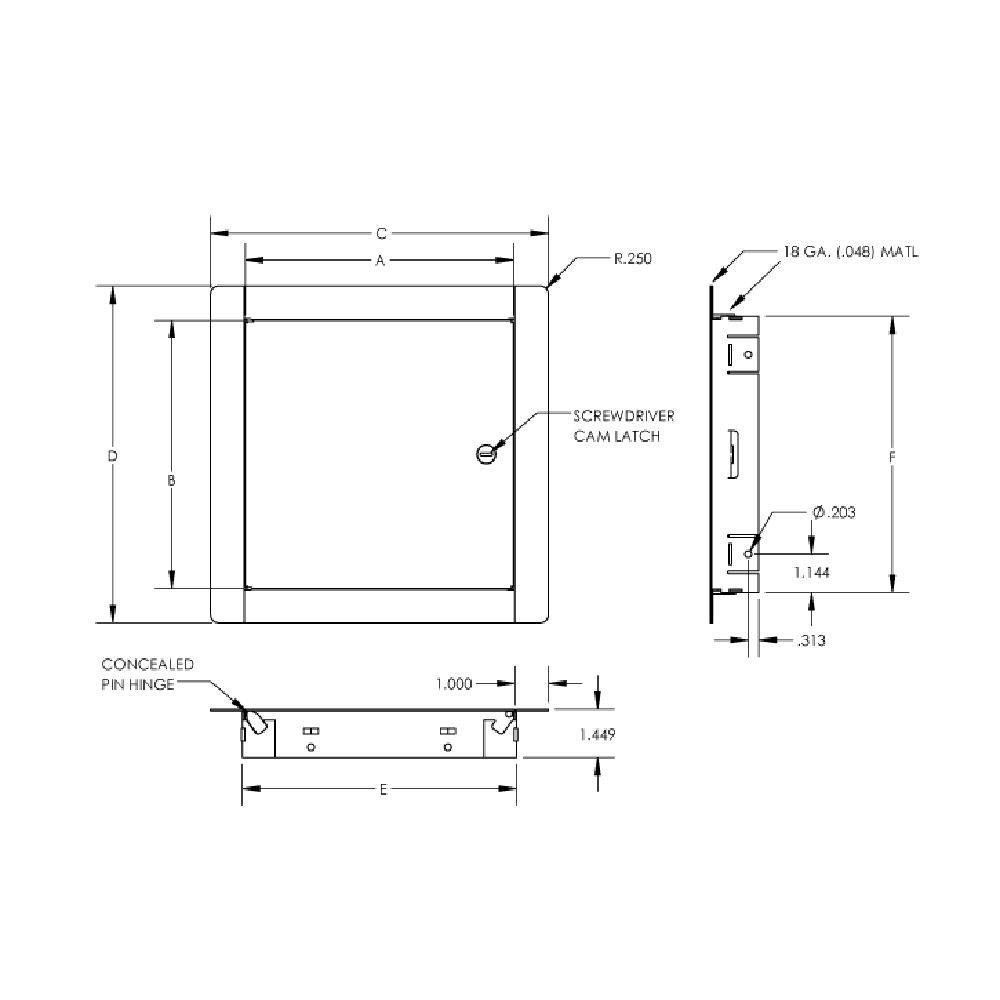

MANUFACTURER REFERENCE
Dimensions & specifications
STANDARD SIZES
Other sizes available upon request
| Nominal Door Size W&H | Latches | Weight per Door | ||
|---|---|---|---|---|
| Inches | mm | lbs. | kg. | |
| 6 X 6 | 152 X 152 | 1 | 1.5 | 0.7 |
| 8 X 8 | 203 X 203 | 1 | 2.1 | 1.0 |
| 10 X 10 | 254 X 254 | 1 | 2.9 | 1.3 |
| 12 X 12 | 305 X 305 | 1 | 3.7 | 1.7 |
| 14 X 14 | 356 X 356 | 1 | 4.6 | 2.1 |
| 16 X 16 | 406 X 406 | 1 | 5.6 | 2.5 |
| 18 x 18 | 457 x 457 | 1 | 6.8 | 3.1 |
| 20 x 20 | 508 x 508 | 1 | 8.2 | 3.7 |
| 24 x 24 | 610 x 610 | 1 | 10.3 | 4.7 |
| 24 x 36 | 610 x 914 | 2 | 16.9 | 7.7 |
| 30 x 30 | 762 x 762 | 2 | 21.2 | 9.6 |
| 36 x 36 | 914 x 914 | 2 | 24.5 | 11.1 |
Manufacturer tables are reproduced as published; dimensions, weights and listings should be confirmed against the current submittal for your selected configuration.
