DrywallACUDOR ACCESS PRODUCT • KERN INDUSTRIES
DW-5040Flush Drywall Access Door
Concealed flange designed to finish neatly into drywall surfaces.
For Edmonton and Alberta projects: contact Kern Industries in Edmonton, Alberta to confirm your size, options and pickup arrangements.
- Application
- Drywall
- Material
- Prime-coated steel
SIZES & CONFIGURATIONS
Manufacturer sizes
Dimensions below are in inches. Roof-hatch tables may specify inside curb dimensions; round panels use diameter. Review the manufacturer table and drawing before specifying an opening. Availability depends on the configuration.
PRODUCT FEATURES
Manufacturer highlights
- 20-gauge galvanized door panel
- Integral perforated drywall taping bead
- Concealed hinge
- Slotted screwdriver cam latch
ORDER OPTIONS
Available choices
- Cylinder lock and key
- Allen, spanner or security Torx latch
- Other sizes by request
MANUFACTURER REFERENCE

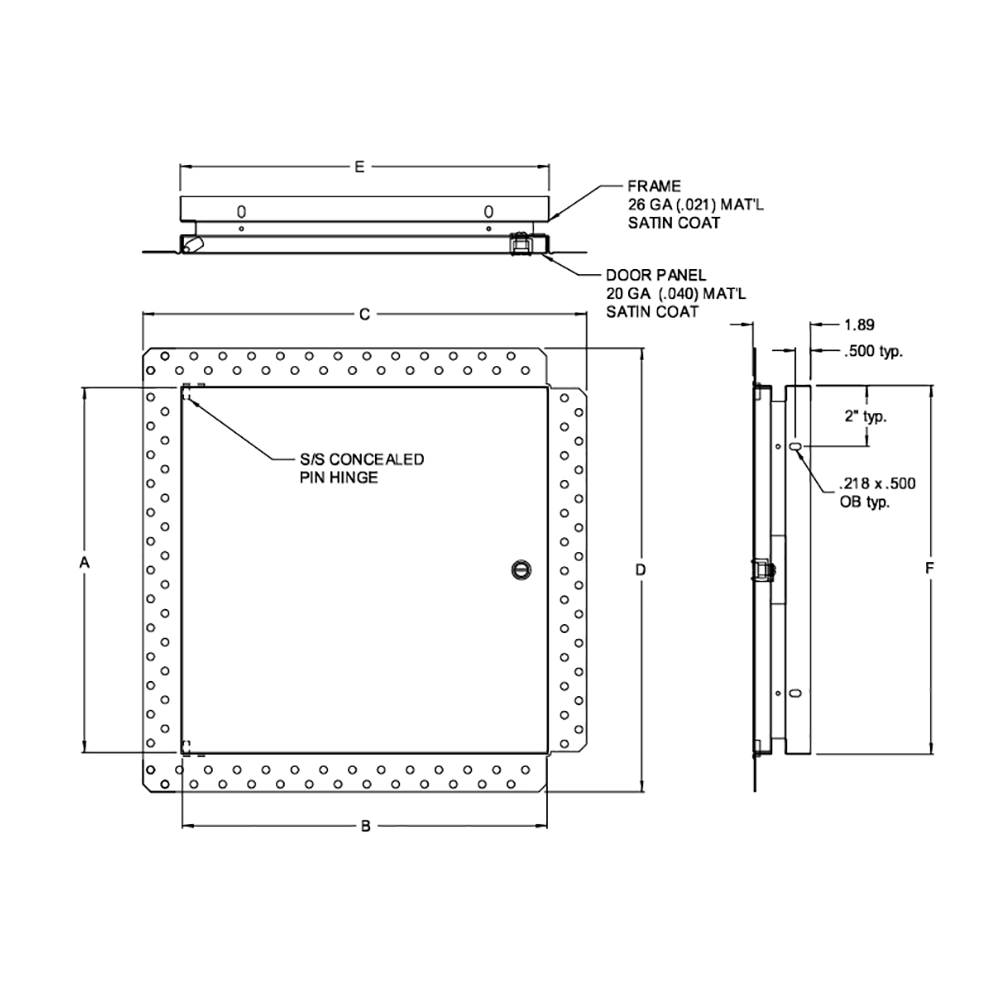

Dimensions & specifications
STANDARD SIZES
Other sizes available upon request
| Nominal Door Size W&H | Latches | Weight per Door | ||
|---|---|---|---|---|
| Inches | mm | lbs. | kg. | |
| 6 X 6 | 152 X 152 | 1 | 1.4 | 0.64 |
| 8 X 8 | 203 X 203 | 1 | 1.8 | 0.82 |
| 10 X 10 | 254 X 254 | 1 | 2.6 | 1.18 |
| 12 X 12 | 305 X 305 | 1 | 3.5 | 1.59 |
| 12 X 24 | 305 X 610 | 1 | 4.5 | 2.04 |
| 14 X 14 | 355 X 355 | 1 | 4.4 | 2.00 |
| 16 X 16 | 406 X 406 | 1 | 4.8 | 2.18 |
| 16 X 24 | 406 X 610 | 1 | 5.0 | 2.27 |
| 18 X 18 | 457 X 457 | 1 | 6.5 | 2.95 |
| 18 X 24 | 457 X 610 | 1 | 8.25 | 3.74 |
| 22 X 22 | 560 X 560 | 1 | 10.2 | 4.62 |
| 24 X 24 | 610 X 610 | 1 | 12.3 | 5.58 |
| 24 X 36 | 610 X 914 | 2 | 17.8 | 8.07 |
| 24 X 48 | 610 X 1219 | 2 | 15.0 | 6.80 |
| 30 X 30 | 762 X 762 | 2 | 17.3 | 7.85 |
| 36 X 36 | 914 X 914 | 2 | 23.0 | 10.43 |
| 36 X 48 | 914 X 1219 | 2 | 25.0 | 11.34 |
Manufacturer tables are reproduced as published; dimensions, weights and listings should be confirmed against the current submittal for your selected configuration.
