DuctACUDOR ACCESS PRODUCT • KERN INDUSTRIES
CD-5080Duct Access Door
Purpose-built service access for rectangular duct systems.
For Edmonton and Alberta projects: contact Kern Industries in Edmonton, Alberta to confirm your size, options and pickup arrangements.
- Application
- HVAC ductwork
- Material
- Galvanized steel
SIZES & CONFIGURATIONS
Manufacturer sizes
Dimensions below are in inches. Roof-hatch tables may specify inside curb dimensions; round panels use diameter. Review the manufacturer table and drawing before specifying an opening. Availability depends on the configuration.
PRODUCT FEATURES
Manufacturer highlights
- 24-gauge galvanized steel double panel
- Hingeless removable panel
- Closed-cell neoprene gasketing
- Fiberglass-insulated panel
- Hand-operated self-tightening cam latch
- Low-to-medium pressure sheet-metal ducts, up to 3 in static water gauge
ORDER OPTIONS
Available choices
- Cylinder lock and key
- Hasp and staple
- L-handle
- Other sizes by request

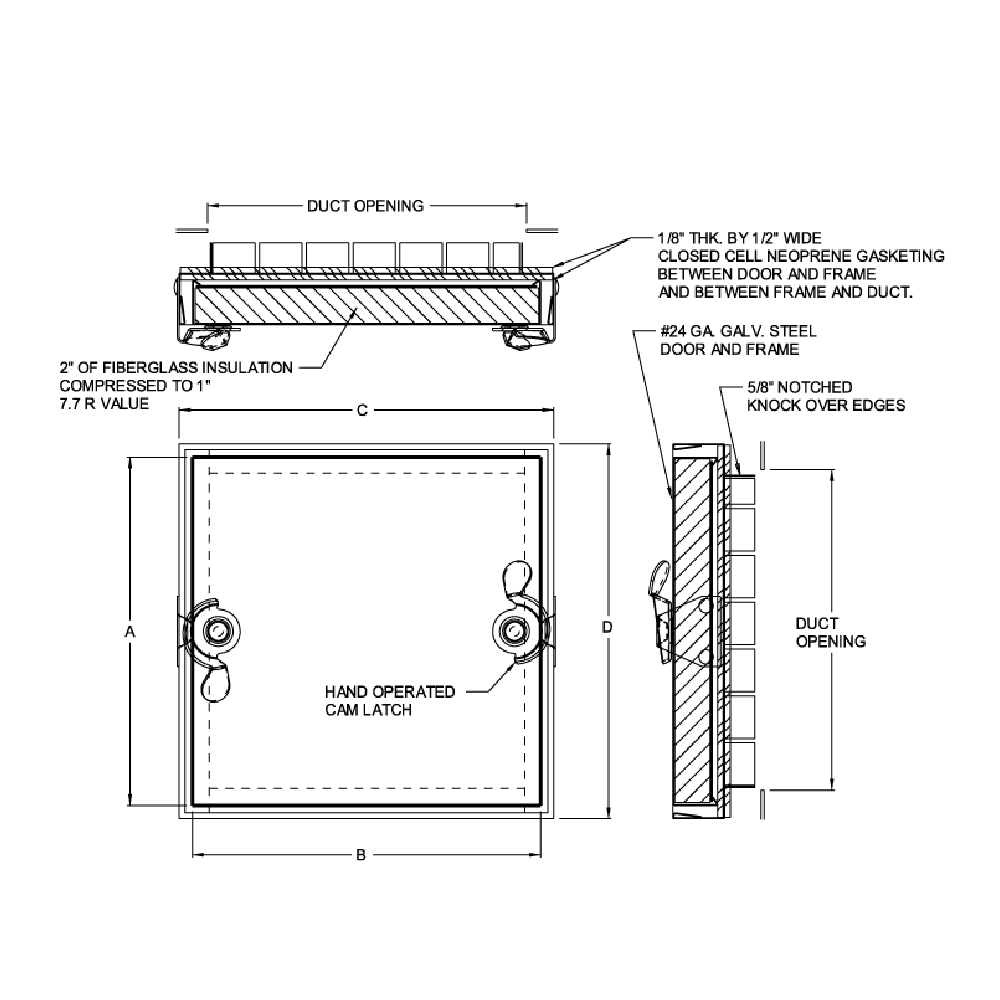

MANUFACTURER REFERENCE
Dimensions & specifications
STANDARD SIZES
Other sizes available upon request
| Nominal Door Size W&H | Weight per Door | |||
|---|---|---|---|---|
| Inches | mm | Opening | lbs. | kg. |
| 6 X 6 | 152 X 152 | 4.75” X 4.75” | 1.10 | 0.5 |
| 8 X 8 | 203 X 203 | 6.7 5” X 6.75” | 1.70 | 0.8 |
| 10 X 10 | 254 X 254 | 8.75” X 8.75” | 2.40 | 1.1 |
| 12 X 12 | 304 X 304 | 10.75”X 10.75” | 3.25 | 1.5 |
| 14 X 14 | 356 X 356 | 12.75” X 12.75” | 4.20 | 1.9 |
| 16 X 16 | 406 X 406 | 14.75” X 14.75” | 5.10 | 2.3 |
| 18 X 18 | 457 X 457 | 16.75” X 16.75” | 6.40 | 2.9 |
| 20 X 20 | 508 X 508 | 18.75” X 18.75” | 7.80 | 3.5 |
| 24 X 24 | 610 X 610 | 22.75” X 22.75” | 10.60 | 4.8 |
Manufacturer tables are reproduced as published; dimensions, weights and listings should be confirmed against the current submittal for your selected configuration.
